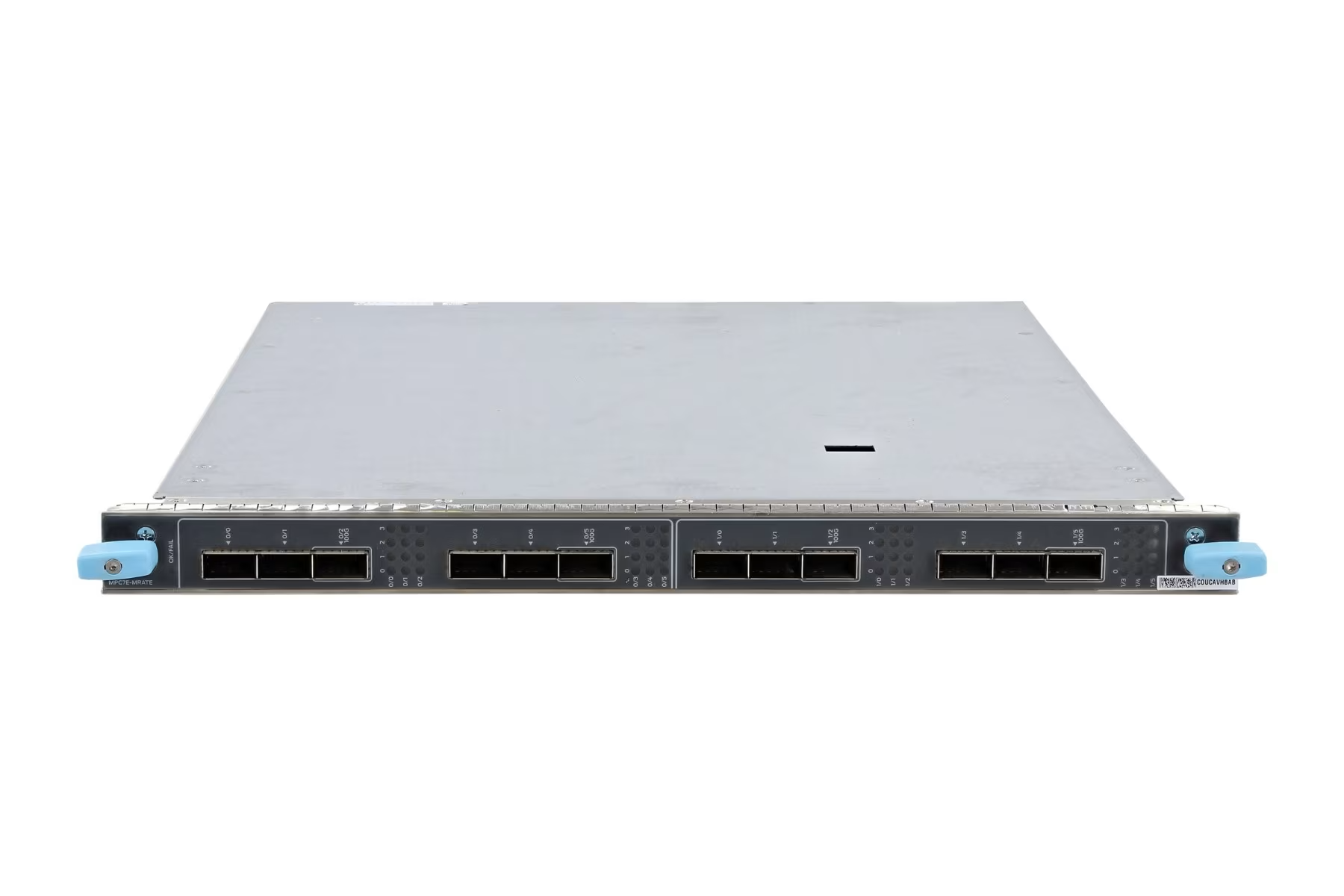

Juniper MPC7E-MRATE

The Juniper MPC7E-MRATE is a fixed-configuration, multi-rate Modular Port Concentrator (MPC) for Juniper MX Series routers. Specifically, it provides twelve QSFP+/QSFP28 ports that run at 10G, 40G, or 100G. As a result, operators can migrate from 10G to 100G on the same card without replacing hardware.

Flexible 10G, 40G, and 100G Ports

In addition, all twelve ports support 40GbE, and each one breaks out into 4x 10GbE with QSFP+ breakout cables. Meanwhile, four ports (0/2, 0/5, 1/2, and 1/5) also support 100GbE with QSFP28 optics. However, the ports form two groups of six, and each group carries up to 240 Gbps, so plan port assignments accordingly.

Performance, Routing Scale, and Security

Furthermore, Juniper Trio chipsets deliver up to 480 Gbps per slot on the MX240, MX480, and MX960, and up to 430 Gbps on MX2000 routers. The card offers full-scale Layer 2 and Layer 2.5 features with reduced-scale Layer 3, including up to 2 million FIB routes, 6 million RIB routes, and 32 L3VPN instances. Moreover, it supports MACsec encryption and IEEE 1588v2 PTP timing.

Compatibility and Requirements

The card works in the MX240, MX480, MX960, MX2010, and MX2020 routers and requires Junos OS 15.1F4 or later. However, MX240, MX480, and MX960 chassis must run in enhanced-IP or enhanced-Ethernet network-services mode. For full platform details, see Juniper’s MX Series datasheet.

MPC7E-MRATE vs. MPC7E-10G

By comparison, the Juniper MPC7E-10G-RTU offers forty fixed 10G SFP+ ports for dense 10G access. For this reason, choose the multi-rate card when you need 40G or 100G uplinks, and choose the 10G card for high port counts at 10G.

Key Features

  • First, it provides 12x QSFP+/QSFP28 multi-rate ports.
  • Second, every port supports 40GbE or 4x 10GbE breakout.
  • Additionally, four ports support 100GbE with QSFP28 optics.
  • Furthermore, it delivers up to 480 Gbps per slot.
  • Moreover, it supports MACsec encryption and IEEE 1588v2 PTP.
  • Finally, it handles up to 2M FIB and 6M RIB routes.

Why Lease from Telecom Leasing?

  • First, you add 100G MX capacity without a large capital outlay.
  • Second, we test every unit so it’s ready to deploy.
  • In addition, flexible terms cover spares, upgrades, and project builds.
  • Finally, you get fast quotes and quick shipping.

Best of all, Telecom Leasing offers the MPC7E-MRATE for lease or purchase, so you can expand MX capacity at a fraction of new cost.

Frequently Asked Questions

What is the Juniper MPC7E-MRATE?

In short, it’s a Juniper MX Series multi-rate line card with 12x QSFP+/QSFP28 ports supporting 10G, 40G, and 100G.

How many ports support 100GbE?

Four of the twelve ports (0/2, 0/5, 1/2, and 1/5) support 100GbE with QSFP28 optics.

What’s the difference between this card and the MPC7E-MRATE-RTU?

Both use the same hardware. However, the RTU version ships licensed for only 6 ports (including 2 QSFP28), while this standard version enables all 12.
