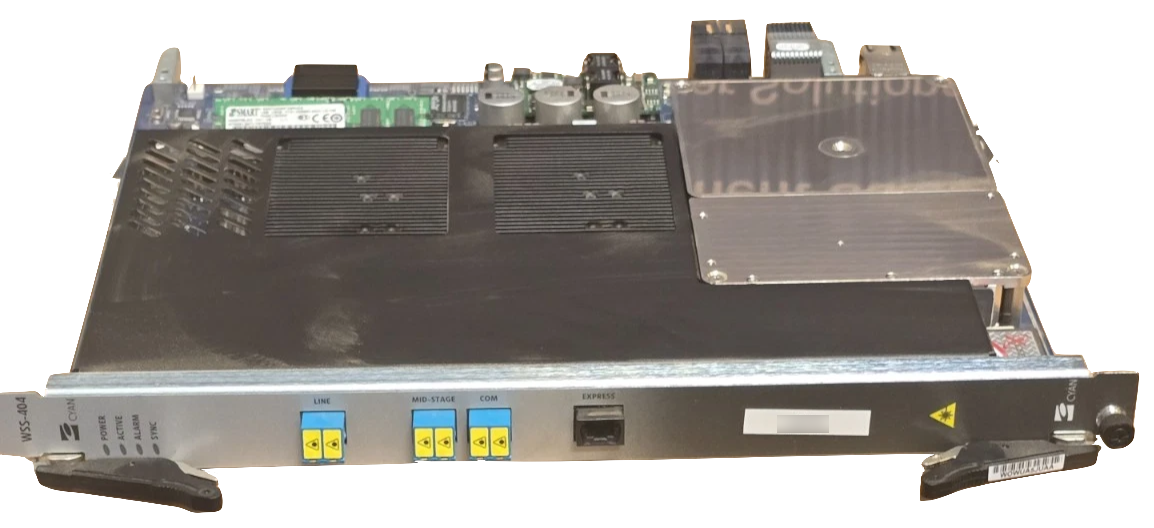

Cyan 800-0084-01 WSS-404

The Cyan 800-0084-01 WSS-404 (HECI/CLEI: WOWUA5JUAA) is a Wavelength Selective Switch (WSS) module for the Cyan Z-Series Packet-Optical Platforms, including the Z33 and Z77. Since Ciena acquired Cyan, Ciena now supports the Z-Series as part of its portfolio. Specifically, the WSS-404 provides 40-wavelength cross-connect for 4-degree (North/South/East/West) ROADM nodes. As a result, operators can switch wavelengths between four fiber directions at one site.

Building a 4-Degree ROADM Node

In addition, operators install one WSS-404 per direction, so a 4-degree node uses four modules. The modules interconnect through the OFX-4 module and pair with passive AWG-40 patches for local add/drop. Moreover, the modules can sit in one to four separate Cyan shelves, which gives operators flexibility in how they lay out a site.

100 GHz Grid with Automatic Power Balancing

Furthermore, the WSS-404 dynamically balances all wavelengths at 100 GHz spacing on the ITU grid. Consequently, channels stay level as operators add or remove services. Likewise, the module accepts fiber Bragg grating dispersion compensation in its mid-stage, and operators can activate additional channels through Right-to-Use licensing.

WSS-404 vs. WSS-402 and WSS-F4

The Cyan WSS-402 (800-0036-01) serves 2-degree East/West nodes with the same 40-channel plan. By comparison, the newer WSS-F4 (800-0139-01) supports 4-degree nodes with up to 96 channels. For background on how these nodes work, see reconfigurable optical add-drop multiplexers.

Key Features

  • First, it provides 40-wavelength DWDM cross-connect.
  • Second, it supports 4-degree (North/South/East/West) ROADM nodes.
  • Additionally, it balances all wavelengths automatically at 100 GHz spacing.
  • Furthermore, it interconnects through the OFX-4 and pairs with the AWG-40.
  • Moreover, it accepts mid-stage fiber Bragg grating dispersion compensation.
  • Finally, it works with Cyan/Ciena Z33 and Z77 platforms.

Why Lease from Telecom Leasing?

  • First, you keep Z-Series networks running without a large capital outlay.
  • Second, we test every unit so it’s ready to deploy.
  • In addition, flexible terms cover spares, node expansion, and project builds.
  • Finally, you get fast quotes and quick shipping.

Best of all, Telecom Leasing offers the WSS-404 for lease or purchase, so you can source discontinued Z-Series hardware with confidence.

Frequently Asked Questions

What is the Cyan 800-0084-01?

In short, it’s the WSS-404, a 4-degree, 40-channel Wavelength Selective Switch module for the Cyan/Ciena Z33 and Z77 platforms.

What is the CLEI code for the WSS-404?

The WSS-404 uses HECI/CLEI code WOWUA5JUAA.

How many WSS-404 modules does a 4-degree node need?

A 4-degree node needs four WSS-404 modules, because each module serves one direction (North, South, East, or West).
